Recovering data from a backup should be an easy thing to do. At least this is what you expect. Yesterday I had a problem which should have been easy to solve, but it was not. I hope this blog post can help others who face the same problem.

The problem

1. I had an encrypted Time Machine backup which was not used for months
2. This backup was not on an official Apple Time Capsule or on a USB HDD, but on a WD MyCloud NAS
3. I needed files from this backup
4. After running out of time I only had SSH access to the macOS, no GUI

The struggle

By default, Time Machine is one of the best and easiest backup solution I have seen. As long as you stick to the default use case, where you have one active backup disk, life is pink and happy. But this was not my case.

As always, I started to Google what shall I do. One of the first options recommended that I add the backup disk to Time Machine, and it will automagically show the backup snapshots from the old backup. Instead of this, it did not show the old snapshots but started to create a new backup. Panic button has been pressed, backup canceled, back to Google.

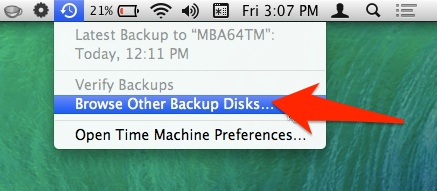

Other tutorials recommend to click on the Time Machine icon and pressing alt (Option) key, where I can choose "Browse other backup disks". But this did not list the old Time Machine backup. It did list the backup when selecting disks in Time Machine preferences, but I already tried and failed that way.

YAT (yet another tutorial) recommended to SSH into the NAS, and browse the backup disk, as it is just a simple directory where I can see all the files. But all the files inside where just a bunch of nonsense, no real directory structure.

YAT (yet another tutorial) recommended that I can just easily browse the content of the backup from the Finder by double-clicking on the sparse bundle file. After clicking on it, I can see the disk image on the left part of the Finder, attached as a new disk.
Well, this is true, but because of some bug, when you connect to the Time Capsule, you don't see the sparse bundle file. And I got inconsistent results, for the WD NAS, double-clicking on the sparse bundle did nothing. For the Time Capsule, it did work.
At this point, I had to leave the location where the backup was present, and I only had remote SSH access. You know, if you can't solve a problem, let's complicate things by restrict yourself in solutions.

Finally, I tried to check out some data forensics blogs, and besides some expensive tools, I could find the solution.

The solution

Finally, a blog post provided the real solution - hdiutil.
The best part of hdiutil is that you can provide the read-only flag to it. This can be very awesome when it comes to forensics acquisition.

To mount any NAS via SMB:

mount_smbfs afp://<username>@<NAS_IP>/<Share_for_backup> /<mountpoint>

To mount a Time Capsule share via AFP:

mount_afp afp://any_username:password@<Time_Capsule_IP>/<Share_for_backup> /<mountpoint>

And finally this command should do the job:

hdiutil attach test.sparsebundle -readonly

It is nice that you can provide read-only parameter.

If the backup was encrypted and you don't want to provide the password in a password prompt, use the following:

printf '%s' 'CorrectHorseBatteryStaple' | hdiutil attach test.sparsebundle -stdinpass -readonly

Note: if you receive the error "resource temporarily unavailable", probably another machine is backing up to the device

And now, you can find your backup disk under /Volumes. Happy restoring!

Probably it would have been quicker to either enable the remote GUI, or to physically travel to the system and login locally, but that would spoil the fun.Related articles

Note: We will start off our Smart Contract Hacking journey with some basic solidity programming in the first two weeks. After that we will ramp things up and get a little crazy deploying blockchains and liquidating funds from accounts. But since the purpose of this series is to share the information I have learned over the last two years. I do not want to alienate those new to Smart Contracts and programming so we will take these first few weeks a bit slow.

Also note the text was taken from a book I was / am writing, I retrofitted it for this blog, and placed videos where screenshots may otherwise exist. If something seems off.. Just DM me on twitter and I will update it anything I might have missed during editing, but I tried to edit it as best as possible to meet this format rather then a book.

Cheers @Fiction

http://cclabs.io

Thanks to @GarrGhar for helping me edit/sanity check info for each of the chapters.

About Solidity

The solidity programming language is the language used to write smart contracts on the Ethereum blockchain. As of my initial writing of this chapter the current compiler version was 0.6.6. However, the versions change rapidly. For example, when I started coding in solidity 2 years ago, solidity was in version 4 and now its version 7 with major library and coding stylistic requirement updates in version 5.

So, note that when compiling your code for labs its best to use the version sited in that particular example. This is easily achieved in the online compilers, by selecting the compiler version from the dropdown menu. If you would like to give yourself a small challenge, use the latest compiler version and try to modify the code to work with it. Usually this just requires a few minor modifications and can be a good learning experience under the hood of how Solidity works and what has changed.

Solidity is very similar to writing JavaScript and is fully object oriented. In the intro chapters we will attempt to provide a quick overview of solidity understanding needed for a penetration tester. This will not be full guide to programming, as programming is considered to be a pre-requisite to application hacking. Instead this chapter will be a gentle introduction of needed concepts you will use throughout this book. Solidity is also a needed pre-requisite for understanding the rest of the information and its associated exploitation course.

However, as long as you understand general programming concepts then you should have no trouble understanding solidity. It is a relatively easy language to get up and running with quickly in comparison to more mature languages like C++ and Java which may take a more significant amount of time to learn.

The most important thing to understand with solidity is that unlike traditional languages, solidity handles transactions of monetary value by default. Meaning you don't need to attach to a payment API to add transactions to your applications. Payment functionality is baked into the language as its primary purpose and for usage with the Ethereum blockchain. All that's needed for financial transactions in solidity is a standard library transfer function, and you can easily send value to anyone's public address.

For example, the following simple function will transfer a specified amount of Ether to the user calling the function provided they have a large enough balance to allow the transfer. But lets not dive into that just yet.

1.  function withdraw (uint amount) {

2.     require (amount <= balances[msg.sender]);

3.     msg.sender.transfer(amount);

4.  }

Structure of a Smart Contract

Rather than discuss payments at this point, let's not jump to far ahead of ourselves. We need to understand the structure of a smart contract. Let's take a look at a Hello World example. We will analyze all of the key aspects that make solidity different then other languages you may currently understand.

You can easily follow along with this on http://remix.ethereum.org which is a free online IDE and compiler for coding in solidity. A full video walk through of Remix is included later on in this chapter. Remix contains in-browser compilers and virtual environments that emulate block creation and allow you to send and receive transactions. This is a powerful development tool and absolutely free to use.

Below is the simple code example we will analyze before moving on to a live walk through.

1.  pragma solidity 0.6.6;

2.

3.  contract HelloWorld {

4.

5.     constructor () public payable {

6.           //This is a comment

7.           //You can put your configuration information here

8.     }

9.

10.   function hello () public pure returns (string memory) {

11.                  return "Hello World";

12.         }

13.}

There is a lot going on in this small program so I will try to break it down as simple as possible. In the first line, we have the pragma statement which is required at the top of each program to let the compiler know which version of solidity this code was written for. As I said earlier, these versions change rapidly due to the evolving technology and many changes are implemented into each new version. So, the compiler needs to know which version you intended this to run on.

On line 3 is the word "contract" followed by whatever name you wish to call your contract. The contract's functionality is then enclosed in curly braces. This is similar to creating a class in any other language. It's a block of associated code that can be inherited, or interfaced with and contains its own variables and methods.

On line 5 contained within the contract curly braces we have a constructor denoted by the word "constructor". The constructor is run one time at contract creation and used to setup any variables or details of the smart contract. This is often used for creating an administrator of the contract or other items that are needed prior to contract usage.

Functions and variables within Solidity also have various types and visibility set with their creation. In this case also on line 5 you will see the words "public" and "payable" used to describe the constructor.

Public you may be familiar with as it's a common visibility keyword used in other languages denoting that anyone can call this function. There are other visibility types in Solidity listed below, we will cover each of these in more detail as we use them to our advantage when hacking smart contracts:

Public

This allows anyone to call and use this function

Private

This allows only the current contract and its functions to call it directly.

Internal

This is similar to private except it also allows derived contracts to use its functionality

External

External can only be called externally by other contracts unless the "this" keyword is used with the function call.

The second keyword in the constructor definition "payable" you may not be familiar with unless you have worked on blockchain projects. The word payable within solidity is needed on any item that can receive Ether. So, by setting the constructor as payable we can send a base amount of Ether to the contract when its deployed. This will add an initial monetary liquidity for whatever functionality the contract is providing. For example, if this were a gambling game, we would need some initial Ethereum to payout our winners before our revenues catch up with our payouts and we start collecting large sums of failed gambling revenue.

Within the constructor is an example of how comments are handled in solidity, the simple double forward slash is used like in most languages. Comments function in the same way as any other language in that they are not processed and they are ignored by the compiler but are useful for understanding the code you wrote later after you have taking time apart from reading your code.

Finally, we have our simple hello function starting on line 10. Again, there is a lot going on here. First is the name of the function with parentheses that can contain arguments like in any other language. However, this function does not take arguments.

You will notice two more keywords in the function definition "pure" and "returns". Returns is simply the way the function denotes that it will return a value to the user, which it then states directly after it what type of variable it returns. In this case, it returns a string in memory. We will talk about memory and storage later on and the security implications of them.

Next is the word "Pure" there are a couple types of functions in Solidity which will list below with a brief description.

View

This type of function does not modify or change the state of the contract but may return values and use global variables.

Pure

A pure function is a function which is completely self-contained in that it only uses local variables and it does not change the state of the smart contract.

Finally, in line 11 we return our string to the user who called the function. In the context of a user, this could be a physical user using an application or smart contract functionality or it could actually be another smart contract calling the function.

Hands on Lab – Remix HelloWorld

Now that we talked over in detail all the new concepts to solidity programs using a small example, lets compile and run this code on remix.ethereum.org.

Action Steps:

ü Browse to remix.etherum.org
ü Type out the the code from above (Do not copy Paste it)
ü Compile and deploy the code
ü Review the transaction in the log window

Intro to the Remix Development Environment Video

In Remix create a new file and type out the example helloworld code. I would suggest that you actually type out all of the examples in this book. They will not be exhaustive or long and will provide you great value and make you comfortable when it comes to writing your own exploits and using the compilers and tools. These are all essential tools to your understanding.

Within your remix environment, you will want to select the compiler version 0.6.6 to ensure that this code runs correctly. If you typed out the code correctly you should not receive any errors and you will be able to deploy and interact with it. In the following video we will walk you through that process and explain some nuances of solidity.

Explaining and Compiling HelloWorld Video:

Lets now quickly review a few key points about the transaction that you saw within the video when compiling your code. This transaction is shown below.

__________________________________________________________________________________

call to HelloWorld.hello

CALL

from 0xBF8B5A94eD4dFB45089b455B1A0e296D6669c625

to HelloWorld.hello() 0xADe285e11e0B9eE35167d1E25C3605Eba1778C86

transaction cost 21863 gas (Cost only applies when called by a contract)

execution cost 591 gas (Cost only applies when called by a contract)

hash 0x14557f9552d454ca865deb422ebb50a853735b57efaebcfc9c9abe57ba1836ed

input 0x19f...f1d21

decoded input {}

decoded output {

"0": "string: Hello World"

}

logs []

_________________________________________________________________________________

The output above is a hello transaction which contains the relevant data retrieved when you executed the hello function in the video. The first important thing to notice is the word "CALL". In solidity there are call and send transactions. The difference between the two is whether they change the state of the blockchain or not. In this case we did not change the state, we only retrieved information so a CALL was issued. If we were changing variables and sending values then a SEND transaction would have been issued instead.

Next you will see the "From" address which should correspond with the address you used to call the transaction. The "To" field should be the address the smart contract was given when you deployed the smart contract. You can view this on your deployment screen next to the deployed contract name by hitting the copy button and pasting it somewhere to see the full value.

You will then see the costs and gas associated with the transaction. Costs change based on the size of the contracts and the assembly code created by the compiler. Each instruction has a cost. We will cover that later when we do a bit of debugging and decompiling.

Finally take note of the Decoded Output which contains the return string of "Hello World".

Summary

If you are new to solidity or new to programming in general this might have been a lot of information. In the next chapter we cover a few more key solidity concepts before moving on to exploiting vulnerabilities where a much more in depth understanding of how solidity works and its security implications will be explored. For more solidity resources and full-length free tutorials check out the following references

Homework:

https://cryptozombies.io/en/course/

The Threatconnect analysis

The only technical analysis on why Russia was behind the hack, can be read here: https://www.threatconnect.com/blog/fancy-bear-anti-doping-agency-phishing/

After reading this, I was able to collect the following main points:

It is Russia because Russian APT groups are capable of phishing
It is Russia because the phishing site "wada-awa[.]org was registered and uses a name server from ITitch[.]com, a domain registrar that FANCY BEAR actors recently used"
It is Russia because "Wada-arna[.]org and tas-cass[.]org were registered through and use name servers from Domains4bitcoins[.]com, a registrar that has also been associated with FANCY BEAR activity."
It is Russia, because "The registration of these domains on August 3rd and 8th, 2016 are consistent with the timeline in which the WADA recommended banning all Russian athletes from the Olympic and Paralympic games."
It is Russia, because "The use of 1&1 mail.com webmail addresses to register domains matches a TTP we previously identified for FANCY BEAR actors."

There is an interesting side-track in the article, the case of the @anpoland account. Let me deal with this at the end of this post.

My problem with the above points is that all five flag was publicly accessible to anyone as TTP's for Fancy Bear. And meanwhile, all five is weak evidence. Any script kittie in the world is capable of both hacking WADA and planting these false-flags.

A stronger than these weak pieces of evidence would be:

Malware sharing same code attributed to Fancy Bear (where the code is not publicly available or circulating on hackforums)
Private servers sharing the IP address with previous attacks attributed to Fancy Bear (where the server is not a hacked server or a proxy used by multiple parties)
E-mail addresses used to register the domain attributed to Fancy Bear
Many other things

For me, it is quite strange that after such great analysis on Guccifer 2.0, the Threatconnect guys came up with this low-value post.

The fancybear website

It is quite unfortunate that the analysis was not updated after the documents have been leaked. But let's just have a look at the fancybear . net website, shall we?

Now the question is, if you are a Russian state-sponsored hacker group, and you are already accused of the hack itself, do you create a website with tons of bears on the website, and do you choose the same name (Fancy Bear) for your "Hack team" that is already used by Crowdstrike to refer to a Russian state-sponsored hacker group? Well, for me, it makes no sense. Now I can hear people screaming: "The Russians changed tactics to confuse us". Again, it makes no sense to change tactics on this, while keeping tactics on the "evidence" found by Threatconnect.

It makes sense that a Russian state-sponsored group creates a fake persona, names it Guccifer 2.0, pretends Guccifer 2.0 is from Romania, but in the end it turns out Guccifer 2.0 isn't a native Romanian speaker. That really makes sense.

What happens when someone creates this fancybear website for leaking the docs, and from the Twitter account reaches out to the media? Journalists check the website, they see it was done by Fancy Bear, they ~~Bing~~ Google this name, and clearly see it is a Russian state-sponsored hacker group. Some journalists also found the Threatconnect report, which seems very convincing for the first read. I mean, it is a work of experts, right? So you can write in the headlines that the hack was done by the Russians.

Just imagine an expert in the USA or Canada writing in report for WADA:
"the hack was done by non-Russian, but state-sponsored actors, who planted a lot of false-flags to accuse the Russians and to destroy confidence in past and future leaks". Well, I am sure this is not a popular opinion, and whoever tries this, risks his career. Experts are human, subject to all kinds of bias.

The Guardian

The only other source I was able to find is from The Guardian, where not just one side (it was Russia) was represented in the article. It is quite unfortunate that both experts are from Russia - so people from USA will call them being not objective on the matter. But the fact that they are Russian experts does not mean they are not true ...

https://www.theguardian.com/sport/2016/sep/15/fancy-bears-hackers--russia-wada-tues-leaks

Sergei Nikitin:
"We don't have this in the case of the DNC and Wada hacks, so it's not clear on what basis conclusions are being drawn that Russian hackers or special services were involved. It's done on the basis of the website design, which is absurd," he said, referring to the depiction of symbolically Russian animals, brown and white bears, on the "Fancy Bears' Hack Team" website.

I don't agree with the DNC part, but this is not the topic of conversation here.

Alexander Baranov:
"the hackers were most likely amateurs who published a "semi-finished product" rather than truly compromising information. "They could have done this more harshly and suddenly," he said. "If it was [state-sponsored] hackers, they would have dug deeper. Since it's enthusiasts, amateurs, they got what they got and went public with it.""

The @anpoland side-track

First please check the tas-cas.org hack https://www.youtube.com/watch?v=day5Aq0bHsA , I will be here when you finished it. This is a website for "Court of Arbitration for Sport's", and referring to the Threatconnect post, "CAS is the highest international tribunal that was established to settle disputes related to sport through arbitration. Starting in 2016, an anti-doping division of CAS began judging doping cases at the Olympic Games, replacing the IOC disciplinary commission." Now you can see why this attack is also discussed here.

My bet is that this machine was set-up for these @anpoland videos only. Whether google.ru is a false flag or it is real, hard to decide. It is interesting to see that there is no google search done via google.ru, it is used only once.
The creator of the video can't double click. Is it because he has a malfunctioning mouse? Is it because he uses a virtualization console, which is near-perfect OPSEC to hide your real identity? My personal experience is that using virtualization consoles remotely (e.g. RDP) has very similar effects to what we can see on the video.
The timeline of the Twitter account is quite strange, registered in 2010
I agree with the Threatconnect analysis that this @anpoland account is probably a faketivist, and not an activist. But who is behind it, remains a mystery.
Either the "activist" is using a whonix-like setup for remaining anonymous, or a TOR router (something like this), or does not care about privacy at all. Looking at the response times (SQLmap, web browser), I doubt this "activist" is behind anything related to TOR. Which makes no sense for an activist, who publishes his hack on Youtube. People are stupid for sure, but this does not add up. It makes sense that this was a server (paid by bitcoins or stolen credit cards or whatever) rather than a home computer.

For me, this whole @anpoland thing makes no sense, and I think it is just loosely connected to the WADA hack.

The mysterious Korean characters in the HTML source

There is another interesting flag in the whole story, which actually makes no sense. When the website was published, there were Korean characters in HTML comments.

https://web.archive.org/web/20160913013727/http://fancybear.net/

When someone pointed this out on Twitter, these Korean HTML comments disappeared:

https://web.archive.org/web/20160914231209/http://www.fancybear.net/

These HTML comments look like generated HTML comments, from a WYSIWYG editor, which is using the Korean language. Let me know if you can identify the editor.

The Russians are denying it

Well, what choice they have? It does not matter if they did this or not, they will deny it. And they can't deny this differently. Just imagine a spokesperson: "Previously we have falsely denied the DCC and DNC hacks, but this time please believe us, this wasn't Russia." Sounds plausible ...

Attribution

Let me sum up what we know:

It makes sense that the WADA hack was done by Russia, because:

Russia being almost banned from the Olympics due to doping scandal, it made sense to discredit WADA and US Olympians
There are multiple(weak) pieces of evidence which point to Russia

It makes sense that the WADA hack was not done by Russia, because:

By instantly attributing the hack to the Russians, the story was more about to discredit Russia than discrediting WADA or US Olympians.
In reality, there was no gain for Russia for disclosing the documents. Nothing happened, nothing changed, no discredit for WADA. Not a single case turned out to be illegal or unethical.
~~Altering the leaked documents makes no sense if it was Russia~~ (see update at the end). Altering the leaked documents makes a lot of sense if it was not Russia. Because from now on, people can always state "these leaks cannot be trusted, so it is not true what is written there". It is quite cozy for any US organization, who has been hacked or will be hacked. If you are interested in the "Russians forging leaked documents" debate, I highly recommend to start with this The Intercept article
If the Korean characters were false flags planted by the Russians, why would they remove it? If it had been Russian characters, I would understand removing it.
All evidence against Russia is weak, can be easily forged by even any script kittie.

I don't like guessing, but here is my guess. This WADA hack was an operation of a (non-professional) hackers-for-hire service, paid by an enemy of Russia. The goal was to hack WADA, leak the documents, modify some contents in the documents, and blame it all on the Russians ...

Questions and answers

Was Russia capable of doing this WADA hack? Yes.
Was Russia hacking WADA? Maybe yes, maybe not.
Was this leak done by a Russian state-sponsored hacker group? I highly doubt that.
Is it possible to buy an attribution-dice where all six-side is Russia? No, it is sold-out.

Let me know what you think about this, and please comment.

Update: As TheGrugq pointed out, Guccifer has been found to alter documents https://www.reddit.com/r/EnoughTrumpSpam/comments/4uyih3/russian_hackers_altered_emails_before_release_to/?st=IUJDLSIE&sh=e195e908
